Steam Boiler
Capacity: 1-110t/h（0.6 - 66 Million Kcal）
Applicable Fuels: Gas, Oil, Coal, Biomass, Electric
Application Industries: Heating, Chemical, Food Industries,etc.
The model range of Xian Chuang steam boilers includes SZS gas/oil-fired steam boilers, WNS gas/oil-fired steam boilers, LSS ultra-low nitrogen condensing steam boilers, coal-fired steam boilers, DHL corner tube steam boilers, LHG biomass steam boilers, SHL solid fuel (coal/wood) steam boilers, Apani high-pressure electrode steam boilers, and LHD electric steam generators.
For more information about this boiler model, please contact us !
A steam boiler is a thermal energy device that heats water and converts it into steam by burning fuel or utilising energy sources such as electricity and waste heat. The steam produced can be used for a variety of purposes, including industrial processing, heating, power generation, and disinfection, and is a core device for energy conversion and thermal energy supply.
① Lean Structural Innovation The use of corrugated furnace tubes and threaded flue tubes optimises heat transfer, while serpentine tubes enable flue gas to circulate five times, significantly improving thermal efficiency. ② Peak Energy-Saving Technology The ultra-low nitrogen water-cooled premixed burner has obtained the first certification in Zhejiang Province, representing the most advanced combustion technology globally. ③ Comprehensive Safety Assurance Ultra-low nitrogen oxide emissions <30 mg/m³, meeting local environmental protection requirements! ④ Stable Operation Manufactured using high-strength steel and corrosion-resistant materials, suitable for long-term stable operation. |
|
| WNS Series Gas/Oil-fired Steam Boiler | |||||
| Model | Rated Evaporation Capacity (t/h) | Rated Pressure (MPa) | Steam Temperature (°C) | Maximum Shipping Weight (t) | Maximum Shipping Dimensions (m) |
| WNS1-0.7-Y(Q) | 1 | 0.7 | 170 | 4 | 3.3x1.8x2.1 |
| WNS1-1.0-Y(Q) | 1 | 1 | 184 | 4 | 3.3x1.8x2.1 |
| WNS1-1.5-Y(Q) | 1.5 | 1 | 184 | 4.5 | 3.0x1.8x2.0 |
| WNS1.5-1.25-Y(Q) | 1.5 | 1.25 | 194 | 4.5 | 3.0x1.8x2.0 |
| WNS2-1.0-Y(Q) | 2 | 1 | 184 | 8.5 | 4.4x2.1x2.5 |
| WNS2-1.25-Y(Q) | 2 | 1.25 | 194 | 8.5 | 4.4x2.1x2.5 |
| WNS3-1.0-Y(Q) | 3 | 1 | 184 | 8.9 | 4.6x2.3x2.6 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 194 | 8.9 | 4.6x2.3x2.6 |
| WNS4-1.25-Y(Q) | 4 | 1.25 | 194 | 13.3 | 4.7x2.5x2.9 |
| WNS4-1.6-Y(Q) | 4 | 1.6 | 204 | 13.3 | 4.7x2.5x2.9 |
| WNS5-1.25-Y(Q) | 5 | 1.25 | 194 | 14.3 | 5.3x2.7x3.3 |
| WNS5-1.6-Y(Q) | 5 | 1.6 | 204 | 14.3 | 5.3x2.7x3.3 |
| WNS6-1.25-Y(Q) | 6 | 1.25 | 194 | 19.5 | 5.9x2.6x3.0 |
| WNS6-1.6-Y(Q) | 6 | 1.6 | 204 | 19.5 | 5.9x2.6x3.0 |
| WNS8-1.25-Y(Q) | 8 | 1.25 | 194 | 22.6 | 5.9x2.8x3.1 |
| WNS8-1.6-Y(Q) | 8 | 1.6 | 204 | 22.6 | 5.9x2.8x3.1 |
| WNS10-1.25-Y(Q) | 10 | 1.25 | 194 | 25.8 | 7.7x2.8x3.1 |
| WNS10-1.6-Y(Q) | 10 | 1.6 | 204 | 25.8 | 7.7x2.8x3.1 |
| WNS15-1.25-Y(Q) | 15 | 1.25 | 194 | 34.7 | 7.0x3.1x3.6 |
| WNS15-1.6-Y(Q) | 15 | 1.6 | 204 | 34.7 | 7.0x3.1x3.6 |
| WNS20-1.25-Y(Q) | 20 | 1.25 | 194 | 46 | 8.3x3.4x4.0 |
| WNS20-1.6-Y(Q) | 20 | 1.6 | 204 | 46 | 8.3x3.4x4.0 |
Note: This table displays parameters for WNS series gas/oil-fired steam boiler. For other models of thermal oil boilers, please navigate to the corresponding webpage or contact customer service.
1.How big is your factory? Does it have mass production capacity?
Our production base covers a total area of 80 acres, with a 30,000 square meter digital intelligent production workshop, and has a large-scale manufacturing capacity of 40,000 tons of steam boilers per year, which can fully meet the needs of large-scale and high-quality production.

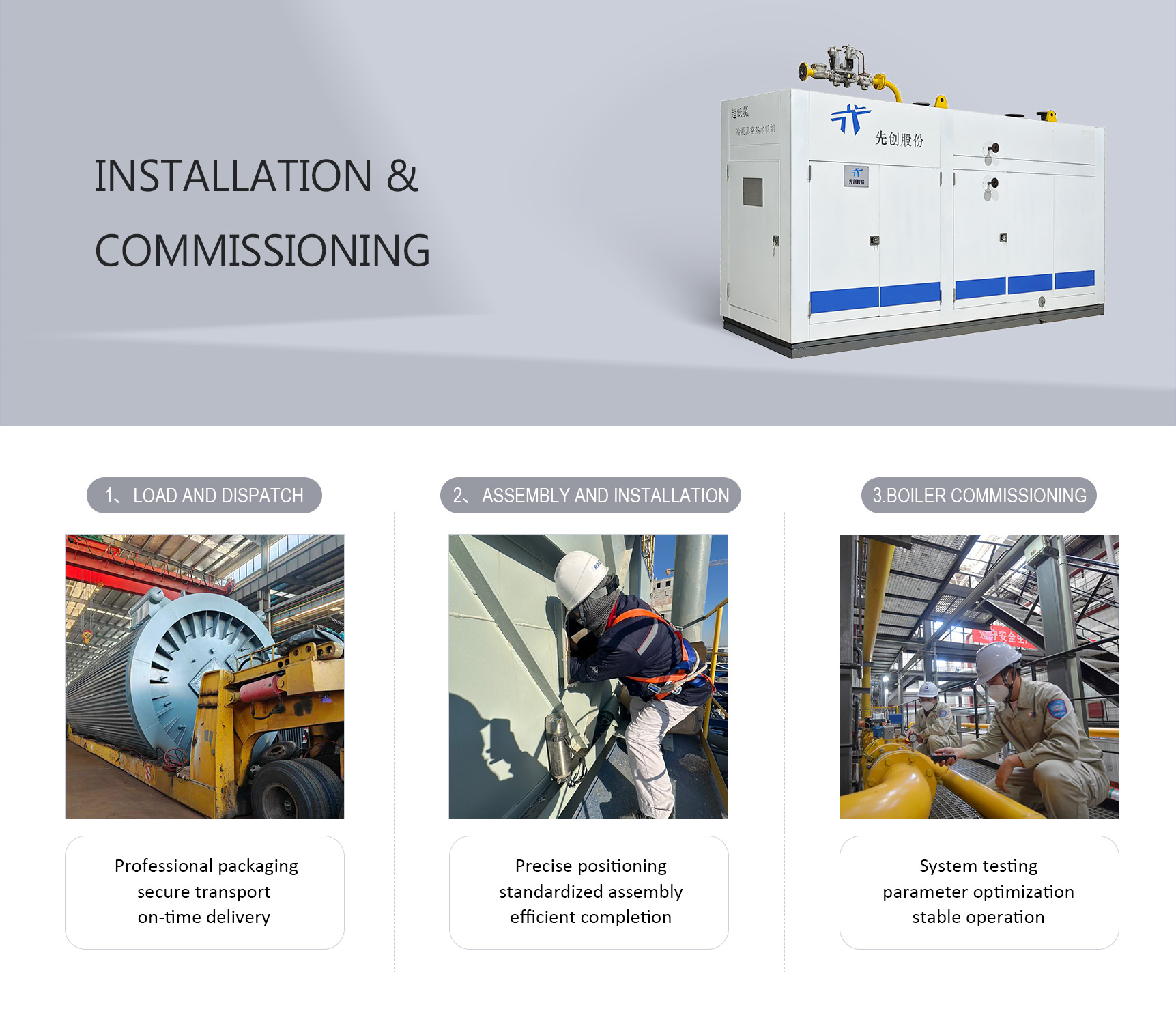

2.What after-sales services do you provide?
3.What are the benefits of contacting your company?
We offer customized boiler design and quotation solutions tailored to your specific needs. Our professional technical team is available 24/7 to answer your questions , please contact us !
