Fuel oil -fired

Quick Details

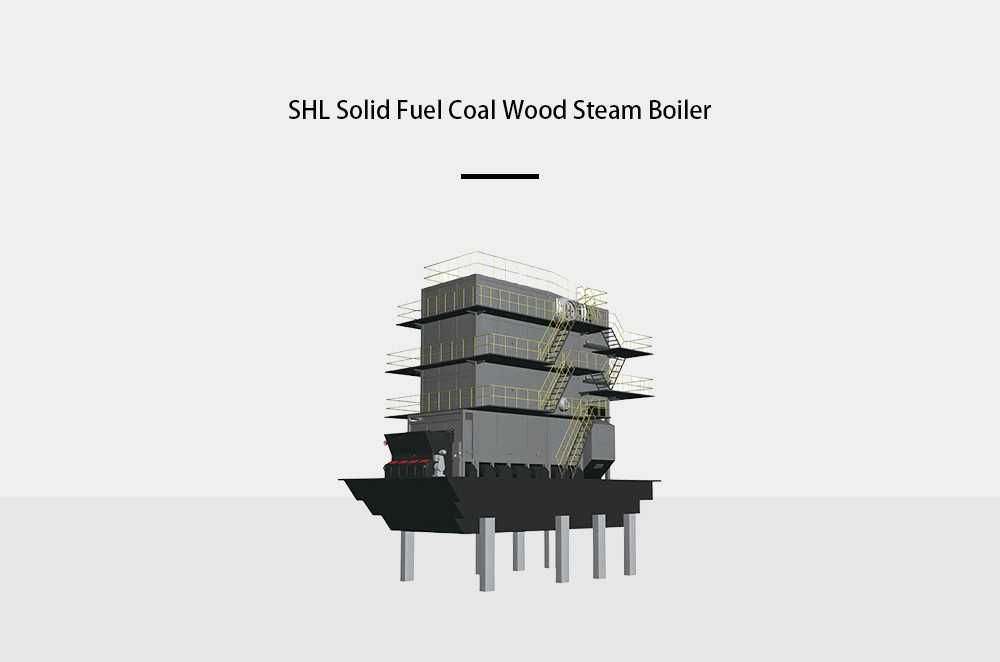

SHL-S new energy-saving and environmentally friendly boiler is our company's latest developed product, replacing traditional chain grate boilers. This product incorporates four patented technologies (with our company's proprietary intellectual property rights and patents. All economic and technical indicators are at the leading level in the domestic market.

Application

Date/Parameters/Model			SHL10-1.25-S SHL10-1.6-S SHL10-2.45-S	SHL15-1.25-S SHL15-1.6S SHL15-2.45-S	SHL20-12.5-S SHL20-1.6-S SHL20-2.45-S	SHL25-1.25-S SHL25-1.6-S SHL25-2.45-S	SHL35-1.25-S SHL35-1.6-S SHL35-2.45-S


Steam capacity		t/h	10	15	20	25	35
Working pressure		MPa	1.25/1.6/2.45	1.25/1.6/2.45	1.25/1.6/2.45	1.25/1.6/2.45	1.25/1.6/2.45
Steam Temperature		℃	193/204/225	193/204/225	193/204/225	193/204/225	193/204/225
Feedwater Temperature		℃	105	105	105	105	105
Boiler Heat area	The area of radiation	㎡	24.7	59.7	78.7	84	114.4
	Convection control	㎡	218.62	292.4	294	377.5	455.4
	Economizer	㎡	174.4	283.2	354	446.4	356
	Air Preheater	㎡	/	119.3	195	243	626.6
Grate Arer		㎡	11.8	18.43	22.6	26	35.1
Adaptation of fuel	Design Fuel		Biomass particles
Adaptation of fuel	Low heat	kcal/kg	4077
Design Heating Effciency		%	86	86	86	87	87
Boiler fuel consumption		kgh	1604	2406	3170	4007	5612
Hot air temperature		℃	150	150	150	150	150
Gas temperature		℃	150	150	150	150	150
Boler atier the instalationot maintrame appearance Dimensions(LXWXH)		m	12.5x4.2x6.2	16x6.2x6.6	16.5x6.7x7.5	18.7x6.7x7.5	13.2x9.5x12.6
		m	12.5x4.2x6.2	16x6.2x6.6	16.5x6.7x7.5	18.7x6.7x7.5	13.2x9.5x12.6

FAQ

1、What are your advantages in boiler production?

As one of the few listed companies in China holding a National Class A Boiler Manufacturing License, XianChuang Boiler has introduced internationally advanced production equipment and possesses a comprehensive industry certification system. We specialize in providing high-quality, "energy-saving, environmentally friendly, and innovation-driven" boiler products. From R&D design to manufacturing and installation, from intelligent operation and maintenance to energy-saving retrofits, we offer full lifecycle professional services, ensuring 100% project acceptance rate with seamless one-stop delivery.

2、What is your production capacity? Do you have your own production base?

We operate an 80-acre modern production base equipped with a 28,000-square-meter digital workshop, delivering an annual output of 40,000 steam tons of boilers to ensure efficient and stable production capacity.

3、Does your factory hold international/industry certifications?

We hold a National Class A Boiler Manufacturing License, along with ASME and EU PED certifications, and are recognized as a National High-Tech Enterprise. This robust dual-certification system (domestic and international) guarantees superior product quality.
