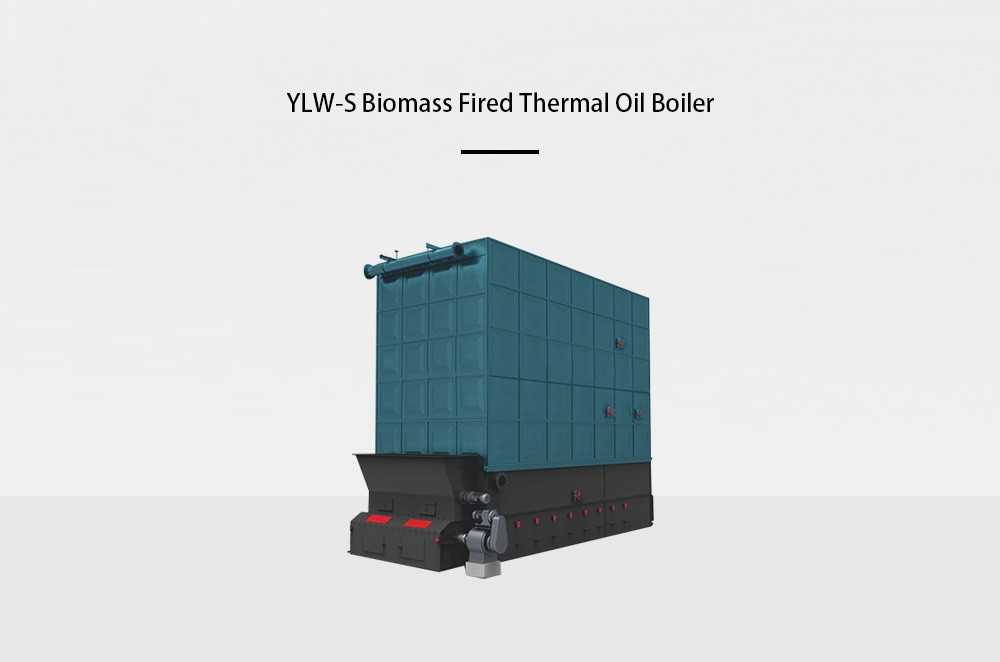

Biomass Thermal Oil for Africa
Capacity: 1.4-30MW （1.2-25 Million Kcal）
Applicable Fuels: Biomass, Coal, Solid fuels, etc.
Application Industries: Petroleum, Chemical, Pharmaceutical,etc.
Reliable heating up to 320°C for factories in Nigeria and South Africa. Fuel-flexible, safe, and built for tough conditions.
Oil & gas price volatility increases production costs and risk.
Frequent failures cause downtime and expensive repairs.
High-pressure steam increases explosion risk and compliance load.
Run on biomass, wood, coal, gas, or diesel to match local availability in NG & ZA.
Save fuel with optimized heat transfer oil circuits and insulation.
No high-pressure steam. Lower risk, easier compliance, less maintenance.
Models: Vertical & Horizontal
Capacity: 300 kg/h – 15 t/h
Max Temperature: 320°C
Options: Travelling grate, automatic feeding
Filters: Cyclone & Electrostatic precipitator
Controls: PLC + Safety Interlocks
“Stable heat and lower fuel bills. Commissioning was smooth.” — Client, Lagos
“Switched from steam to thermal oil, safety improved.” — Client, Johannesburg
“Biomass option fits our local wood waste.” — Client, Port Harcourt
Wood, biomass, coal, natural gas, or diesel. We'll size the system to local supply.
Yes. It runs without high-pressure steam, reducing risk and inspection costs.
Yes. We ship regularly and offer remote/on-site commissioning support.
Ask for a tailored solution for Nigeria or South Africa. Fast quotation & delivery.
Technical Engineer: MAX • WhatsApp/WeChat: +86 18006515657 • Email: MAX@en-xc.com
 | ① Boiler body ③ High-level oil storage tank ④ Separator ⑤ Chimney ⑥ Oil pipe ⑧ Environmental Protection Equipment ⑨ Low-level oil storage tank ⑩ Waste heat recovery system |
| Model | YLW-1400S | YLW-1800S | YLW-2400S | YLW-2800S | YLW-3500S | YLW-4200S | YLW-4600S | |
| Rated thermal power | MW | 1.4 | 1.8 | 2.4 | 2.8 | 3.5 | 4.2 | 4.6 |
| x10⁴ kal/h | 120 | 160 | 160 | 240 | 240 | 360 | 400 | |
| Rated outlet temperature | (℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Rated working pressure | (MPA) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Heat Efficiency | (≥%) | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 |
| System installed capacity | (KW) | 55 | 63 | 76 | 86 | 105 | 125 | 155 |
| Min. transport dimension | Length(MM) | 5000 | 5600 | 6500 | 6500 | 7500 | 7400 | 8000 |
| Width(MM) | 2250 | 2250 | 2500 | 2550 | 2550 | 2870 | 2820 | |
| Height(MM) | 2450 | 2750 | 2800 | 3200 | 3200 | 3300 | 3350 | |
| Max. transportation weight | (KG) | 11000 | 12700 | 13500 | 14500 | 16500 | 25500 | 29000 |
| Model | YLW-6000S | YLW-7000S | YLW-8200S | YLW-9400S | YLW-10500S | YLW-12000S | YLW-14000S | |
| Rated thermal power | MW | 6 | 7 | 8.2 | 9.4 | 1.5 | 12 | 14 |
| x10⁴ kal/h | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | |
| Rated outlet temperature | (℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Rated working pressure | (MPA) | 1 | 1 | 1 | 10 | 1 | 1 | 1 |
| Heat Efficiency | (≥%) | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 |
| System installed capacity | (KW) | 170 | 193 | 150 | 160 | 160 | 260 | 320 |
| Min. transport dimension | Length(MM) | 8320 | 9000 | 9760 | 9760 | 10500 | 11200 | 10500 |
| Width(MM) | 3330 | 3330 | 3270 | 3500 | 3500 | 3560 | 4000 | |
| Height(MM) | 3250 | 3350 | 4010 | 4010 | 4010 | 4010 | 3500 | |
| Max. transportation weight | (KG) | 33500 | 36000 | 35000 | 24800 | 25000 | 27500 | 31000 |
