Capacity: 4.2-17.5t/h
Working Pressure: 1-1.25Mpa
Operating Temperature: 95/70℃，115/70℃，130/70℃
Application Industries: Heating,Shool,Hotel,ect.
Product Introduction and Feature

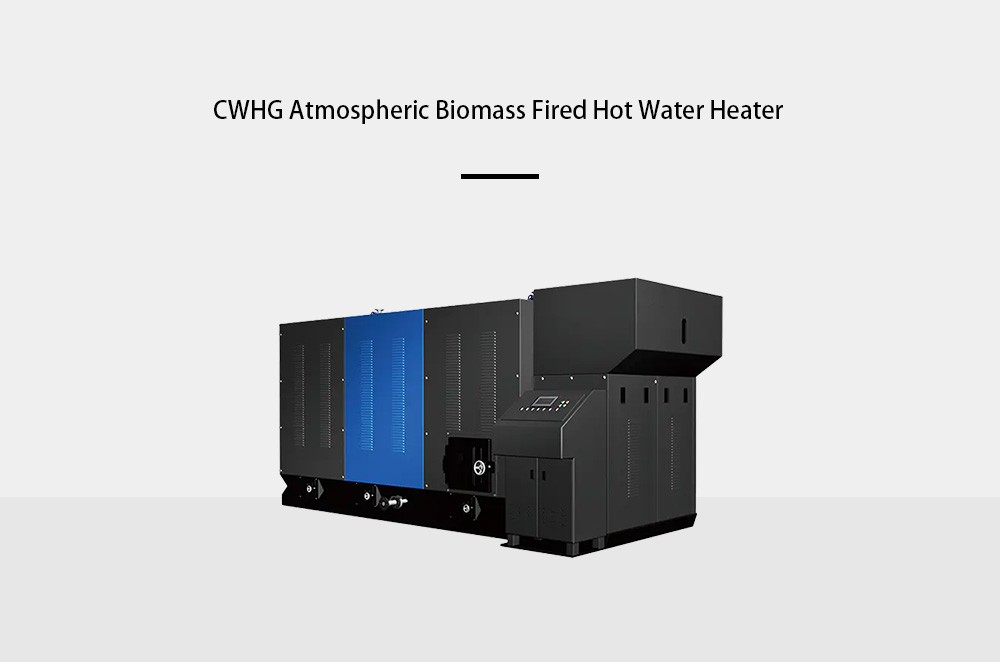

The CWHG-S series atmospheric biomass-fired hot water heater is a kind of biomass. The particle is the fuel exemption boiler, the heater adopts the unique smokeless
combustion technology, the design of multiple blast, and the reasonable arrangement of two and three air in different heights of the furnace, so that the combustion is more
fully matched with the multi-tube energy saving system, the biomass particles are burned in the combustion chamber after the flue gas N return cycle, so that
the hot water heater heating area is increased by 30%, and the thermal efficiency can reach 88%.
Applications
Textile, printing and dyeing, paper making, food, rubber, plastic, chemical, pharmaceutical and other industrial products processing process required high temperature hot
water. And can be used for enterprises, institutions, hotels, schools, catering, service industries heating, bathing, air conditioning and life needs of hot water.
| Boiler model | CWHL2.8-85/60-S | CWHL3.5-85/60-S | CWHL4.2-85/60-S | CWHL4.9-85/60-S | CWHL5.6-85/60-S | CWHL7.0-85/60-S |
| Thermal power (MW) | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 7 |
| Heat generation (10000 kcal) | 240 | 300 | 360 | 420 | 480 | 600 |
| Inlet and outlet diameter | 150 | 200 | 250 | 250 | 250 | 300 |
| Maximum fuel consumption(kg/h) | 600 | 750 | 900 | 1050 | 1200 | 1500 |
| Equipment size(mm) | 5000X2050X2700 | 6000X2150X2800 | 6500X2400X2950 | 7000X2400X3000 | 7500X2600X3200 | 9500X3400X3600 |
| Equipment weight(T) | 10.5 | 12.35 | 15.5 | 19.5 | 22.8 | 26.5 |
